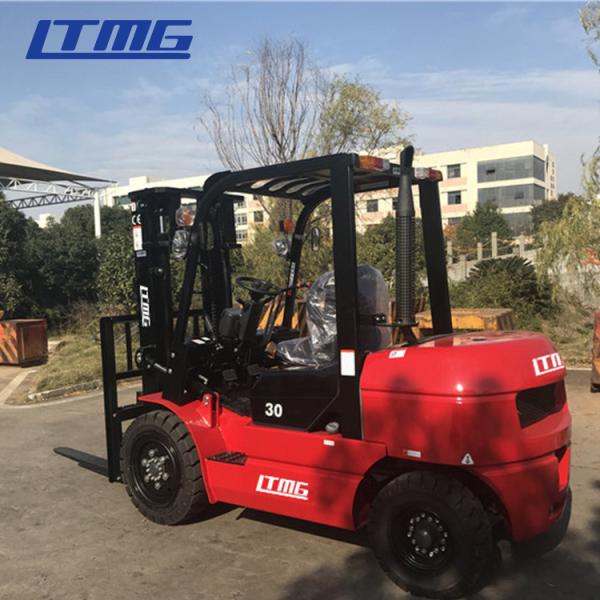

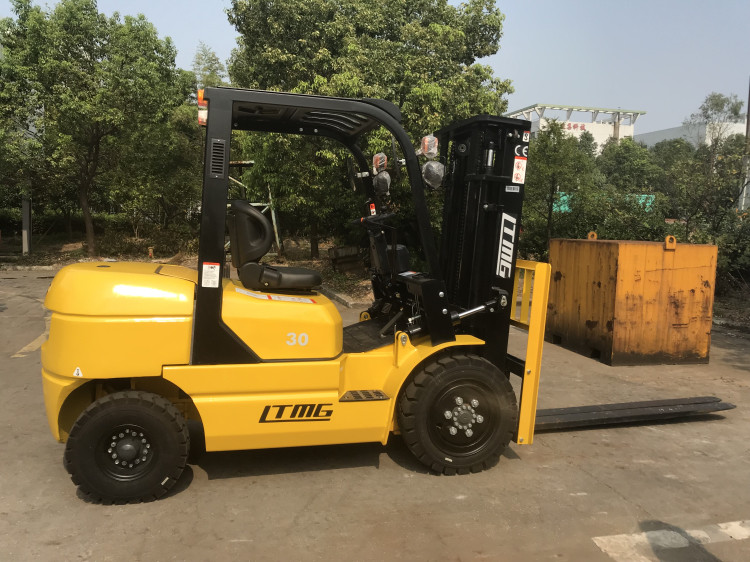

2.5 Ton 3 Ton Paper Roll Clamp Truck Forklift , Diesel Straight Mast Forklift

Product Categories
Xiamen LTMG Co., LTD
Contact Now

2.5 Ton 3 Ton Paper Roll Clamp Truck Forklift , Diesel Straight Mast Forklift

Brand Name : LTMG

Model Number : FD30

Certification : CE, ISO

Place of Origin : China

MOQ : 1 unit

Price : USD 7448-7826 PER SET

Payment Terms : T/T, L/C

Supply Ability : 300 units per month

Delivery Time : 25 days

Packaging Details : in nude packing, fix in container

Overall dimension : 3590*1995*2500mm

engine : Isuzu, Mitsubishi, Xinchai engine

Warranty : 1 year or 2000 working hours

Gradeability : 20%

optional : side shift, solid tires,

Power Souce : diesel engine

Fork size : 1070x125x45mm

color : white

Contact Now

2.5 ton 3 ton paper roll clamp forklift truck attachment forklift with diesel power

Feature

1. with Chinese powerful and reliable engines with excellent environmental performance; Isuzu, Mitsubishi engines are optional.
2. Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides
3. Install optional three-way catalytic device to lower the harmful emission beside of low emission engines; Adopt soundproof cotton to ease noise andhigh exhaust system as option to reduce dust.,Install heavy-duty driving axle to ensure safety work at bad working conditions.
4. Spare parts: Side shift,mast height and types, fork size,cab,clamp installation, suspension seat, lights and other attachement are optional.

The specification of 3 ton diesel forklift

Features Manufacturer LTMG
Model Power shift T/M FD30T
Manual shift T/M FD30C
Load capacity kg 3000
Load center mm 500
Power unit Diesel
Operator type Driver/seat
Tire type Front/rear Pneumatic
Wheel Front/rear 2/2
Dimension Max. lifting height mm 3000
Free lift mm 150
Fork size L*W*T mm 1070*125*45
Tilt range Mast forward/backward deg 6/12
Overall length(without fork) mm 2730
Total width mm 1225
Mast height (fork lowering) mm 2115
Overall height fork raised With backrest mm 4160
Height to head guard mm 2090
Turning raduis(outside) mm 2445
Front face of fork to front axle mm 480
Min. right angle stacking aisle without load length&clearence mm 2925
Performance Speed Max Travelling full/no load km/h 18/19.5
Lifting full/no load mm/s 450/500
Lowering full/no load mm/s 450/450
Weight Truck weight kg 4300
Weight distribution Full load front/rear kg 6490/890
No load front/rear kg 1670/2700
Frame Tires Number front/rear 2/2
Model front axle 28x9-15-12PR
rear axle 6.50-10-10PR
Wheelbase mm 1700
Tread Front/rear mm 1000/970
Ground clearence At lowest point(mast) mm 135
Frame mm 135
Brake Service brake Hydraulic-foot pedal
Parking brake Mechanical-hand lever
Engine Battery Voltage/capacity V/AH 12/80
Engine Model ISUZU C240
Rated power kw/rpm 34.3/2500
Rated torque N.m/rpm 138/1800
Number of cylinders 4
Placement L 2.369
Fuel tank capacity L 70
Transmission Speed forward/backward Power shift T/M Manual shift T/M 1-1 power shift T/M 2-2 manual shift T/M
Operating pressure Hydraulic system pressure kg/cm² 180

2.5 Ton 3 Ton Paper Roll Clamp Truck Forklift , Diesel Straight Mast Forklift2.5 Ton 3 Ton Paper Roll Clamp Truck Forklift , Diesel Straight Mast Forklift

2.5 Ton 3 Ton Paper Roll Clamp Truck Forklift , Diesel Straight Mast Forklift2.5 Ton 3 Ton Paper Roll Clamp Truck Forklift , Diesel Straight Mast Forklift

    • After-sale Service
      Nowadays more than100 agents around the world can supply LTMG professional after-sale service.
      All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
      Detail clauses and policies please check our website and product certificate.
