LTMG 3 ton forklift fd30t forklift diesel forklift truck

Product Categories
Xiamen LTMG Co., LTD
Contact Now

LTMG 3 ton forklift fd30t forklift diesel forklift truck

Brand Name : LTMG

Model Number : FD30

Certification : CE, ISO, EURO,EPA

Place of Origin : China

MOQ : 1 unit

Price : USD 8015~9150 per unit

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 500 units per month

Delivery Time : 25 days

Packaging Details : Nude packing, fix in container

Color : RED/YELLOW

Product Name : 3 ton forklift fd30t forklift diesel forklift

Brand : LTMG

Load Center : 500mm

Free lift : 150mm

Tire : Pneumatic / Solid

Mast : 2 stage / 3 stage

Model : forklift fd30t

Contact Now

LTMG 3 ton forklift fd30t forklift diesel forklift truck

Feature:

1.Simple industrial design together with high quality car painting,ensure attractive apprearance to customers.

2.Adopted circular endoscopy with 180° view significantly increased driving safety.

3.Stainless steel pedal guarantee sturdy and durable during working.

4.Multiple valve of domestic first-class brand guarantee higher reliability

5.Enlarge diameter of piston rod on tilting cylinder,bending resistance increased about 15%.

Specification:

Features 1 Manufacturer LTMG
2 Model
Manual shift T/M FD30
3 Load capacity kg 3000
4 Load center mm 500
5 Power unit Diesel
6 Operator type Driver/seat
7 Tire type Pneumatic
8 Wheel Front/rear 2/2
Dimension 9 Max. lifting height mm 3000
10 Free lift mm 150
11 Fork size L*W*T mm 1070*125*45
12 Tilt range Mast forward/backward deg 6/12
13 Overall length(without fork) mm 2705
14 Total width mm 1225
15 Mast height (fork lowering) mm 2075
16 Overall height fork raised With backrest mm 4250
17 Height to head guard mm 2140
18 Turning raduis(outside) mm 2445
19 Front face of fork to front axle mm 480
20 Min. right angle stacking aisle without load length&clearence mm 2925
Performance 21 Speed Max Travelling full/no load km/h 18/19.5
22 Lifting full/no load mm/s 450/500
23 Lowering full/no load mm/s 450/450
24 Max.drawbar pull Power shift T/M full/no load kg 1500/1000
Manual shift T/M full/no load kg 1550/1000
25 Gradeability at 1.6km/h Power shift T/M full/no load % 18/20
Manual shift T/M full/no load % 18/20
Weight 26 Truck weight kg 4380
27 Weight distribution Full load front/rear kg 6490/890
28 No load front/rear kg 1670/2700
Frame 29 Tires Number front/rear 2/2
30 Model front axle 28x9-15-12PR
31 rear axle 6.50-10-10PR
32 Wheelbase mm 1700
33 Tread Front/rear mm 1000/970
34 Ground clearence At lowest point(mast) mm 120
Frame mm 135
35 Brake Service brake Hydraulic-foot pedal
Parking brake Mechanical-hand lever
Engine 36 Battery Voltage/capacity V/AH 12/80
37 Engine Model ISUZU C240
Rated power kw/rpm 34.3/2500
Rated torque N.m/rpm 138/1800
Number of cylinders 4
Placement L 2.369
Fuel tank capacity L 70
38 Transmission Speed forward/backward Power shift T/M Manual shift T/M 1-1 power shift T/M 2-2 manual shift T/M
39 Operating pressure Hydraulic system pressure kg/cm² 180

LTMG 3 ton forklift fd30t forklift diesel forklift truck

LTMG 3 ton forklift fd30t forklift diesel forklift truck

After-sale service:

Nowadays we have been sell more than 100 countries. LTMG Machinery is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive after-services.
All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.During the warranty period, if there is any part broken because of quality problem (except easy-damaged parts), the defective parts will be repaired or replaced free of charges.
Detail clauses and policies please see to our website and product’s quality certificate.


Quality LTMG 3 ton forklift fd30t forklift diesel forklift truck wholesale

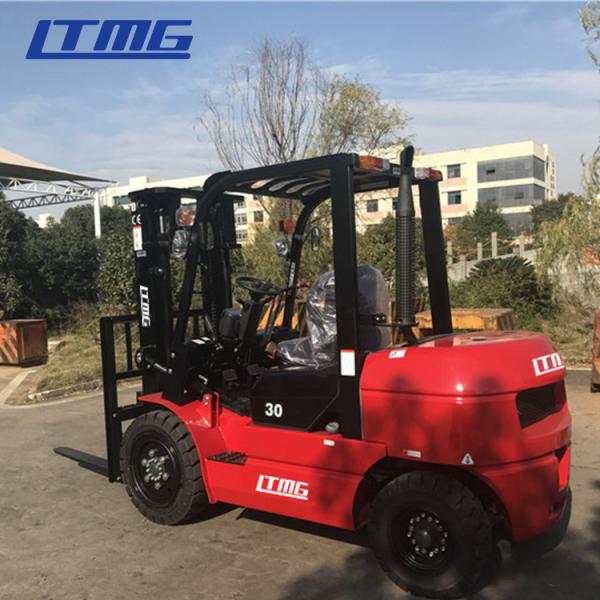

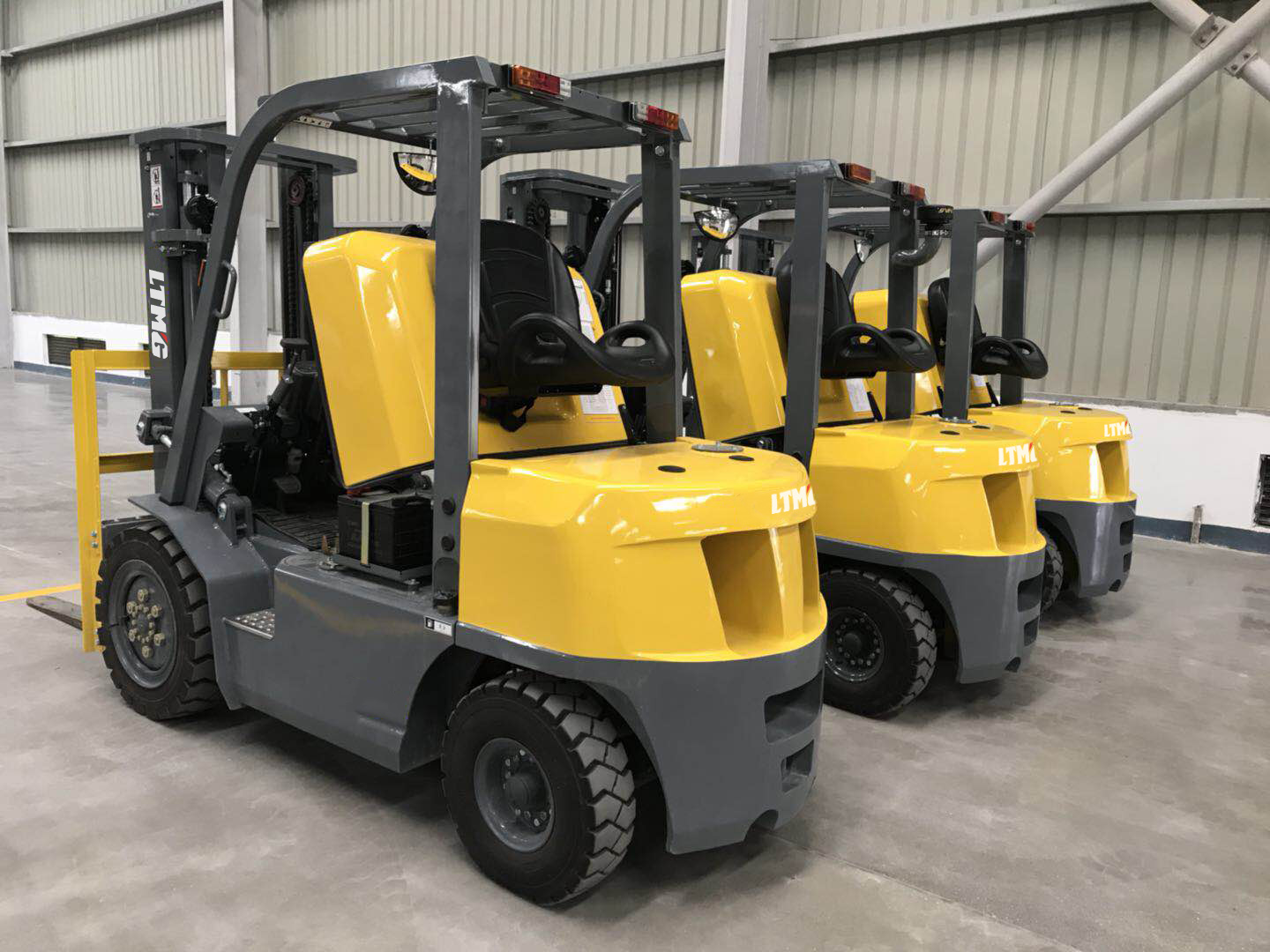

LTMG 3 ton forklift fd30t forklift diesel forklift truck Images
