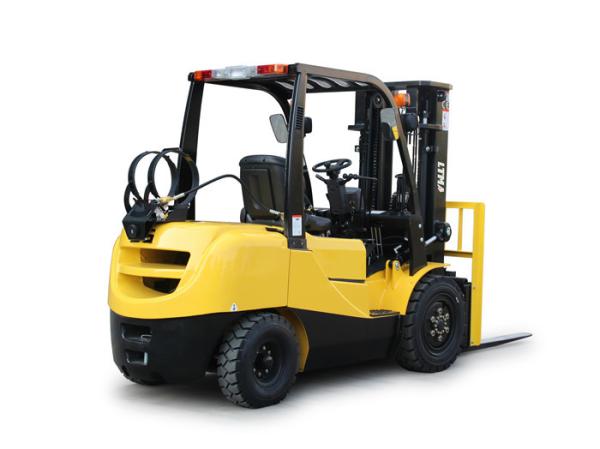

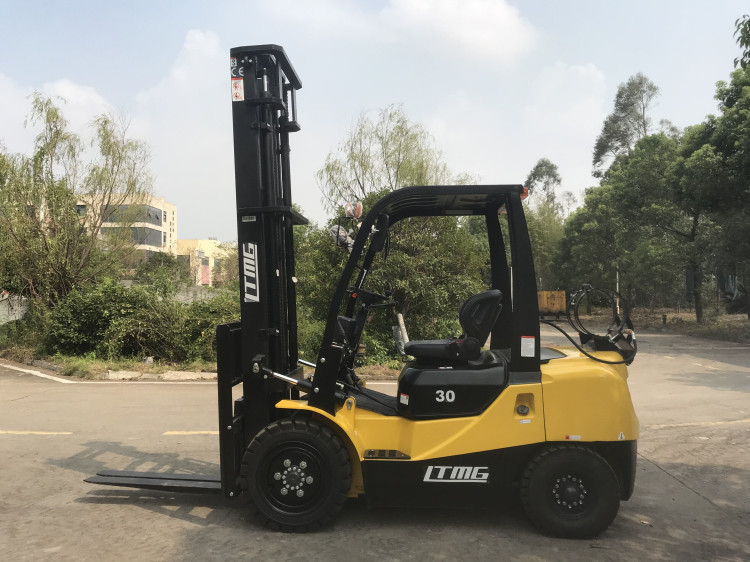

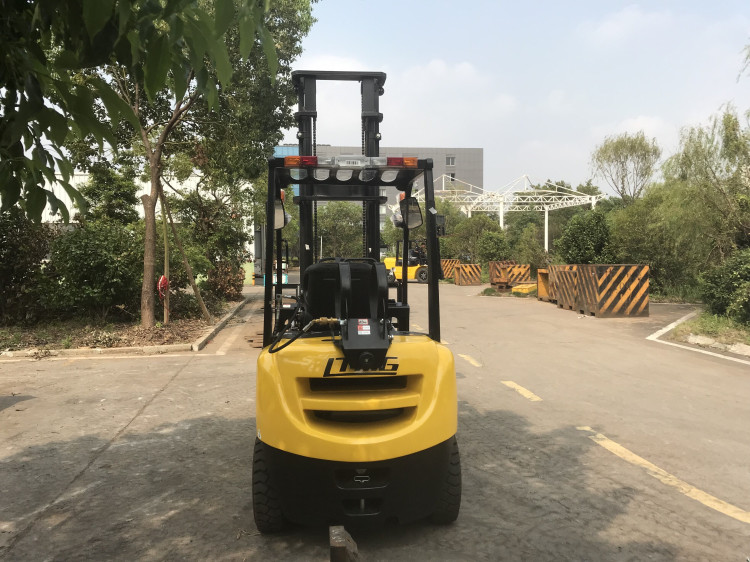

Chinese top technology comfortable 3 ton gasolin LPG forklift with customized color
Features of 3 ton gasolin LPG forklift
1) with powerful original JAPAN NISSAN K25 gasoline engine, you can get it's parts in your loacal place very easily;
2) with auto electric hydraulic transmission by finger with TCM technology;
3) with a tool box and free spare parts;
4) with CE, ISO, SGS certificates, quality is guaranteed.
5) with USA IMPCO convertor;
6) with USA EATON brand steering gear;
7) with copper radiator, which has much better heat dissipation performance than aluminum radiator
8) with warning light, title-cylinder anti-dust protection, lamp protection, luxury full suspended comfortable seat, rain-proof overhead guard.
The specifications of Chinese top technology comfortable 3 ton gasolin LPG forklift with customized color
| Manufacturer | | | LTMG |
| Model | Power shift T/M | FG30T |
| Manual shift T/M | FG30C |
| Power unit | | | Gasoline/LPG |
| Operator type | | | Driver/seat |
| Wheel | Front/rear | | 2/2 |
| Max. lifting height | | mm | 3000 |
| Free lift | | mm | 150 |
| Tilt range | Mast forward/backward | deg | 6/12 |
| Overall length(without fork) | | mm | 2705 |
| Total width | | mm | 1225 |
| Mast height (fork lowering) | | mm | 2075 |
| Overall height fork raised | With backrest | mm | 4250 |
| Height to head guard | | mm | 2140 |
| Turning raduis(outside) | | mm | 2445 |
| Front face of fork to front axle | | mm | 480 |
| Min. right angle stacking aisle | without load length&clearence | mm | 2925 |
| Speed | Max Travelling full/no load | km/h | 18/19.5 |
| Lifting full/no load | mm/s | 450/500 |
| Lowering full/no load | mm/s | 450/450 |
| Max.drawbar pull | Power shift T/M full/no load | kg | 1500/1000 |
| Manual shift T/M full/no load | kg | 1550/1000 |
| Gradeability at 1.6km/h | Power shift T/M full/no load | % | 18/20 |
| Manual shift T/M full/no load | % | 18/20 |
| Weight distribution | Full load front/rear | kg | 6490/890 |
| No load front/rear | kg | 1670/2700 |
| Tires | Number | front/rear | 2/2 |
| Model | front axle | 28x9-15-12PR |
| rear axle | 6.50-10-10PR |
| Wheelbase | | mm | 1700 |
| Tread | Front/rear | mm | 1000/970 |
| Ground clearence | At lowest point(mast) | mm | 120 |
| Frame | mm | 135 |
| Brake | Service brake | | Hydraulic-foot pedal |
| Parking brake | | Mechanical-hand lever |
| Battery | Voltage/capacity | V/AH | 12/80 |
| Engine | Model | | NISSAN K25 |
| Rated power | kw/rpm | 37.4/2300 |
| Rated torque | N.m/rpm | 177/1600 |
| Number of cylinders | | 4 |
| Placement | L | 2.488 |
| Fuel tank capacity | L | 70 |
| Transmission | Speed forward/backward | Power shift T/M Manual shift T/M | 1-1 power shift T/M |
| 2-2 manual shift T/M |
| Operating pressure | Hydraulic system pressure | kg/cm² | 180 |
3 ton gasolin LPG forklift
After-sale service
Nowadays we have been sell more than 100 countries. All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.
Detail clauses and policies please see to our website and product's quality certificate.
Our company
FAQ
1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
