4.5 M Triplex Mast Gasoline Forklift Truck Material Loading Equipment 2.5 Ton

Xiamen LTMG Co., LTD
Contact Now

4.5 M Triplex Mast Gasoline Forklift Truck Material Loading Equipment 2.5 Ton

Brand Name : LTMG

Model Number : FG25T

Certification : CE ISO

Place of Origin : Ningbo,China

MOQ : 1 units

Price : 8369-12560 USD/UNIT

Supply Ability : 300 units/month

Delivery Time : 30

Packaging Details : fixed in container

Payment Terms : L/C, T/T, Western Union, MoneyGram

Engine : NISSANK25

Power type : Gasoline Forklift

Rated Capacity : 2500kg

Load Center : 500mm

lifting height : 3000mm

Gradeability : 20%

Fork size( L*W*T) : 1070*120*40

Fuel tank capacity : 55L

optional : side shift ,fork positioner,mast type

Contact Now

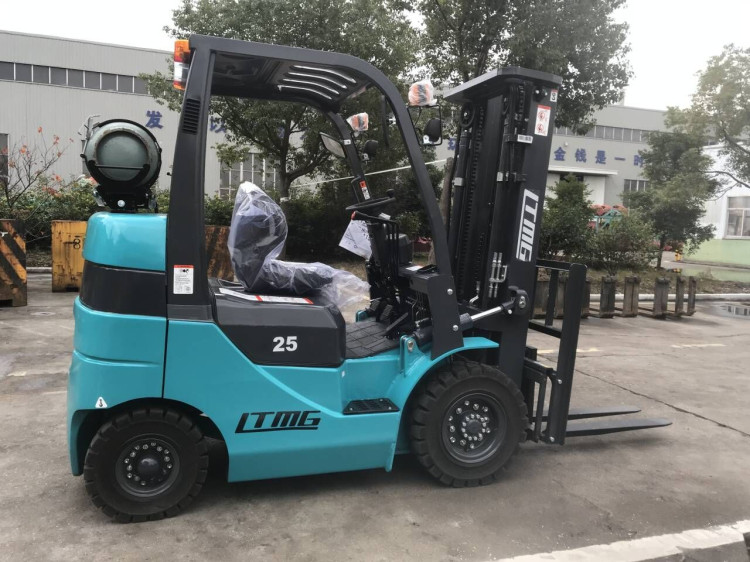

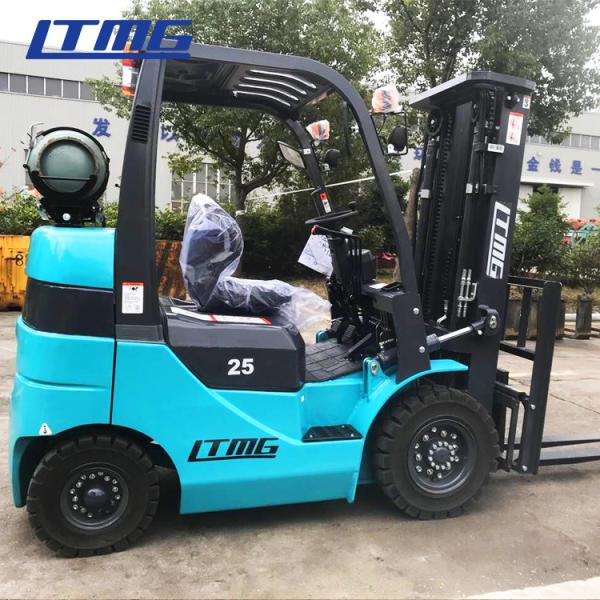

2.5 ton gasoline forklift truck with 4.5 m triplex mast work in container
Using double air filter adopts high intake, effectively reduce the resistance and dust into the engineintake, improving the engine life
With large flow air filter, the air inlet flow is larger, the filtration efficiency is higher and the service life is longer.
Metal stamping water tank cover plate, provide security for the water tank
Can split embedded foot plate, installation and disassembly convenient, easier maintenance and maintenance.
Large LCD CAN communication meter.
Adopt the Japanese original imported okamura gearbox, the engine damping pad adopts the German imported silicon oil shock cushion, can effectively reduce the vehicle vibration.

The specification of 2.5 ton short wheelbase forklift

model   FG25
Power Type   LPG
Rated Capacity kg 2500
Load Center mm 500
lifting height mm 3000
Fork size( L*W*T) mm 1070*120*40
Mast Tilt Angle   6/12
Front Overhang mm 445
Length to face of fork mm 2360
Overall width mm 1110
Mast Lowered Height mm 2055
Mast Extended Height mm 4050
Overhead Guard Height mm 2080
Ground clearence mm 85
Turning raduis mm 2110
right angle stacking aisle mm 2316
Max.Travel km/h 17
Max.lifting mm/s 410
Wheelbase mm 1400
Front   21*7*15
Rear   16(1/4)*6*11(1/4)
Tread mm 902/900
Gradeability % 20
Truck weight kg 3900
Battery(Voltage/capacity) V/AH 12/80
Model   K25 EPA
Manufacturer   NISSAN
Rated output/r.p.m kw/rpm 42/2700
Rated torque N.m/rpm 185/1350
Number of cylinders   4
Bore*Stroke mm 89*100
Displacement cc 2488
Fuel tank capacity L 55
Optional engine : K25/K25EPA/PSI 3.0/PSI 3.0EPA

4.5 M Triplex Mast Gasoline Forklift Truck Material Loading Equipment 2.5 Ton

Export country and information :
LTMG Machinery is a professional forklift manufacturer, forklift and related products has been exported to more than 60 countries.The quality of our forklift is recognized by our customers.
After-sale service
Nowadays we have been sell more than 60 countries.
All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please see to our website and product’s quality certificate.
Our company
4.5 M Triplex Mast Gasoline Forklift Truck Material Loading Equipment 2.5 Ton
FAQ
1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.


2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.


3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.


4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.


5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.


6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
